PLUG & PLAY
Configure in 2 min. Power via CAN connector. Auto-detect bit-rate
STANDALONE
Log CAN data to 8-32GB SD card for months - no pc needed
FREE SOFTWARE
Configure your CL1000, stream data & convert log files
LIVE STREAM
Easily stream raw & DBC decoded CAN data in SavvyCAN
COMPACT
Fits the palm of your hand (6.6 x 4.3 x 2.4 CM) & weighs <50g
LOW COST
The value/cost of the CL1000 is unbeatable

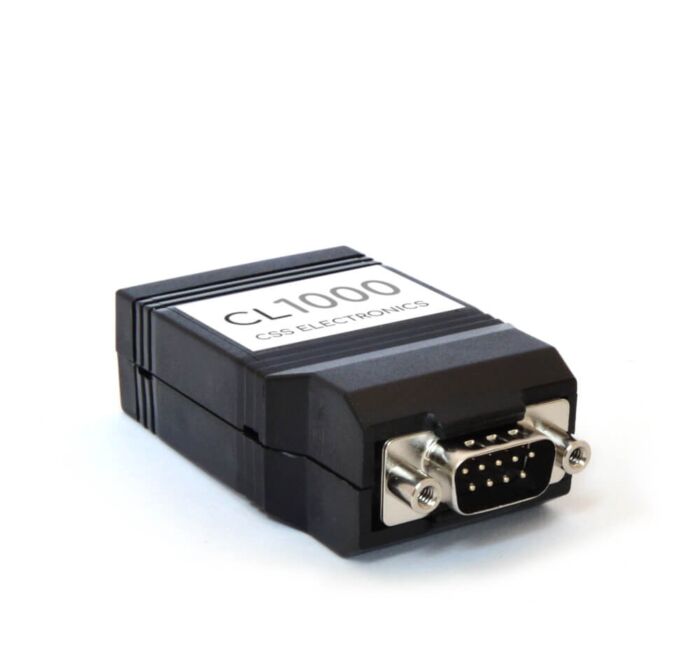

Compact CAN logger with SD
The CL1000 lets you log raw CAN data to an 8-32 GB SD card
- 100% standalone with no PC required:
- Power via CAN connector (<1W power consumption)
- Auto-detect bit rate - no configuration required
- Log raw CAN data in simple CSV style format
- Easily extract data from the SD card via USB
- Configure device via simple CONFIG.INI file
- Silent mode, filters, transmit lists, cyclic logging
CAN streaming in SavvyCAN
The CL1000 can stream raw CAN data via USB to your PC for real-time analysis in Python or SavvyCAN:
- Stream raw CAN data in flexible views (filters, traces, ...)
- Send CAN frames into your CAN bus with real-time control
- Display human-readable form via DBC files (incl. J1939)
- Create real-time plots of decoded signals like speed, RPM, ...
- Highlight bit/byte changes per CAN ID via the 'sniffer view'
- Quickly plot 'hypothesis signals' for reverse engineering
- Load CLX000 log files for post processing analysis

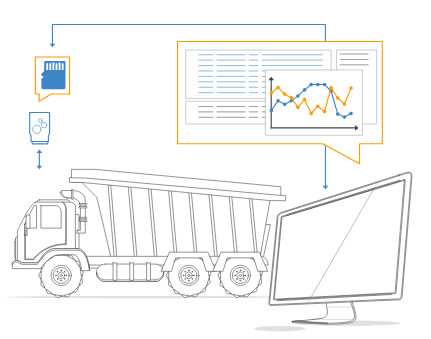

Convert & DBC decode log files
The CL1000 also comes with software tools for converting & decoding log files.
- Convert log files to Vector ASC or PEAK TRC
- Decode log files with DBC support in SavvyCAN
- Export output as CSV for e.g. Excel pivots
Use Cases
The CL1000 is suited for short-duration standalone data logging and ad hoc data streaming.
Below we outline some of the typical applications for the CL1000 - also
| GENERAL | |
|---|---|
| Functionality | Data logger and real-time CAN interface (live send/receive) |
| LEDs | Logger status via three externally visible LEDs |
| Firmware | Supports free firmware updates for adding features |
| Software | Free executables for conversion to ASC/TRC [Windows/Linux] |
| Free open source SavvyCAN software for streaming/analyzing CAN data + DBC decoding [Windows/Linux] | |
| The .INI config / .TXT log files can also simply be opened in text editors or scripts [Windows/Linux] | |
| Safety | CE, FCC, IC Tecnologix offre supporto gestito direttamente dal Team di sviluppo. Non esitare a metterti in contatto con i nostri esperti. Basta chiedere qui Abbiamo trovato altri prodotti che ti potrebbero interessare! |
