How it Works
Version 5.5.0 – Released January 31, 2025 – CT21 Conformant

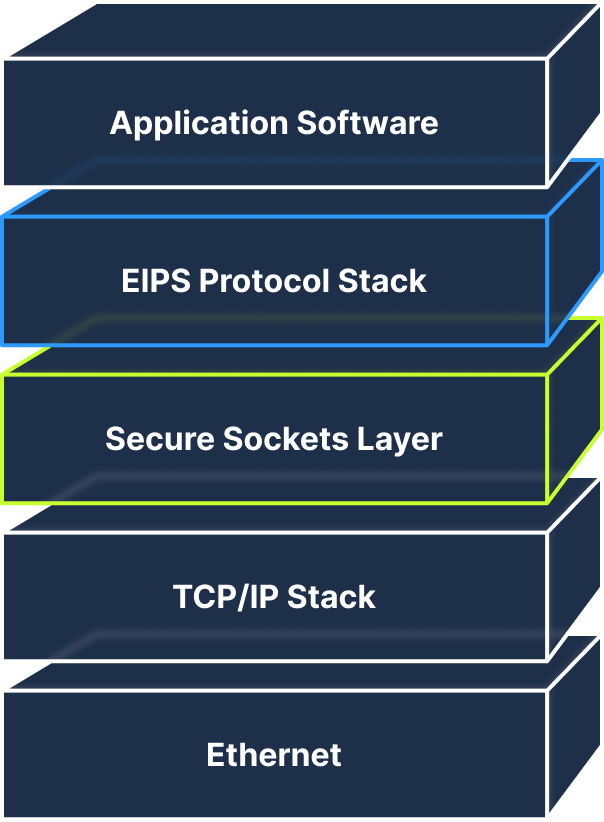

The EIPS stack provides EtherNet/IP I/O Server, I/O Client, Message Server, and message Client functionality.
It also provides a logical and manageable Application Programming Interface (API) for interfacing to your application code. It utilizes the standard Windows TCP/IP stack so it can originate, as well as act as a target for, EtherNet/IP connections and messages.
The EIPS Scanner Class protocol stack can originate a variety of I/O connections based on the user connection configuration set locally via the stack API or remotely over the network via the EIPS Connection Configuration Object (CCO). The CCO provides the interface necessary for software tools.
The EIPS comes with 12 months of download access to the latest version and built in phone/email tech support.
Additional service options are available to assist you with EtherNet/IP requirements, design, EIPS Stack Integration, pre-conformance testing and more.
Supported/Included Objects
- Message router
- Connection manager
- Port
- DLR**
- CIP Sync**
- Modbus translator
- Ethernet link
- TCP/IP
- Connection configuration object
- Assembly
- Identity
- File object
- Class 0 support
- Energy object
- LLDP objects
- User defined objects
** These objects are for configuration only. No DLR or IEEE 1588 software or hardware is provided
Features
- Version 5.5.0
- Tested with ODVA CT21
- Supports:
- TCP/IP object revision 2
- Ethernet link object revision 4
- “Big 12” Diagnostics
- Identity object revision 2
- Adds Identity object Catalog Number (21) Manufacture Date (22) attributes as default attributes
- SetIdentityExplicitProtectionMode API to allow the application to control the explicit Protection Mode
- Assembly object revision 3
- Full support for Dynamic assemblies
- EIPS-SECURE feature updates
Benefits
- High performance
- Out-of-the-box examples
- Simplified porting
- Minimized resources
- Rich set of features
- Scalable
- Secure
Components
- Example scanner class Demo application (binary and source provided)
- EIPS Scanner DLLs (32 & 64 bit) with C++ function call API and C# API for Windows and .NET applications
- EIPS Getting Started and Software Reference manuals
- Sample SOC files for pre-conformance testing
- Application notes with code samples
- Sample EDS files
Compatibility, Resource Utilization
