☑️ High Performance real-time Ethernet Drivers

☑️ Support for Distributed Clocks Master Shift as well as Bus Shift mode

☑️ Out-of-the-box for the most popular operating systems. Get it running on your system in one day!

☑️ Reliable and robust implemetation. Field proven in several 100000 systems per year!

☑️Sophisticated diagnosis functions. Detect state change problems and frame loss errors easily. More than 300 different error codes

☑️High performance and hard real-time. Low CPU load due to acontis real-time Ethernet drivers

☑️Easy to integrate. Various example applications and comprehensive user manuals

☑️EC-Master Class A

☑️Fast and optimized real-time Ethernet drivers

☑️High speed OS layer for optimum EtherCAT Performance and minimum CPU load

☑️MAILBOX protocols: CoE, SoE, AoE, VoE

☑️Sophisticated Distributed Clocks (DC) support

☑️Built in support for DC synchronization based on EtherCAT Master Shift Mechanism

☑️Many example applications including ECMotion demo application for DS402 CoE Drivers

☑️Support for FSoE (Safety over EtherCAT) Slaves

☑️Configuration based on ENI (EtherCAT Network Information) XML file

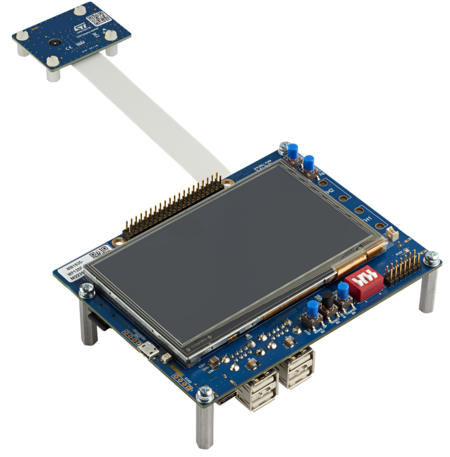

Acontis EC-Master Software supports the ARM Cortex-A7 chip as used on the STM32MP135F-DK Board from STMicroelectronics . The implementation is running in the Open STLinux distribution provided by ST, and support is available for both the included Linux Network Driver and the acontis optimized Real-time Driver.

The standard Linux Network Driver is a reliable, fully-featured Ethernet driver available for most Linux distributions that allows for the easy installation of the EC-Master without any need for any adaptation to the Linux distribution and kernel. This makes EC-Master possible to run "out of the box."

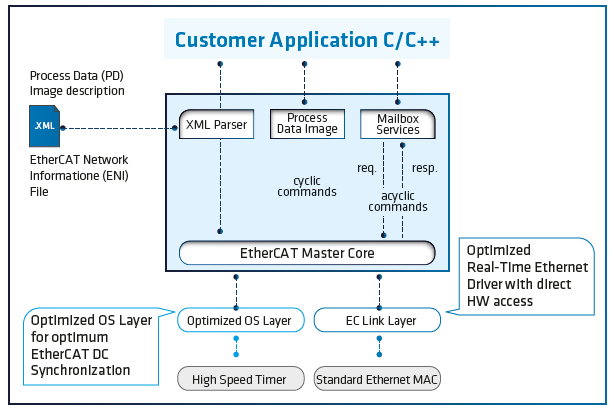

The acontis Real-time Driver is also an option for EC-Master and can significantly improve performance and latency, however its installation requires a special build of the Linux kernel that includes the acontis open source kernel module atemsys.

This architecture provides a faster execution of the frames through the Ethernet controller into the main EC-Master stack, as well as a lower latency and more deterministic jitter in overall network communications.

The acontis Real-time Driver is a reliable, robust solution ideal for applications requiring high-performance real-time communication.
